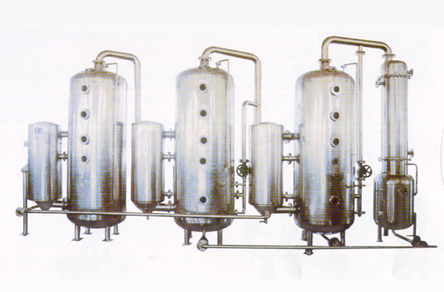

This concentrator is suitable for the concentration of traditional Chinese medicine, western medicine, glucose, starch, monosodium glutamate, dairy products, chemical and other solutions, especially suitable for low-temperature vacuum concentration of heat-sensitive materials. The user can choose the concentrators in the technical parameters according to the actual situation.
1. This concentrator adopts external heating type natural circulation type and negative pressure evaporation method, which has fast evaporation speed and large concentration ratio, which can reach 1.2-1.3;
2. This concentrator adopts three-effect evaporation at the same time, and the secondary steam has repeated effects, which not only saves the investment of the boiler, but also saves energy consumption. Compared with the single-effect concentrator, the energy consumption is reduced by 70%. The entire investment of the concentrator is recovered from the energy savings.
3. Multi-function operation features: ⑴ The alcohol concentration can be recovered about 80%. ⑵One-effect, two-effect, and three-effect can be combined repeatedly to collect ointment. ⑶ It can be fed intermittently and continuously.
| Model | WZIII500 | WZIII1000 | WZIII1500 | WZIII2000 | WZIII3000 | WZIII5000 | |
| Evaporation capacity (kg/h clean water) | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | |
| Air consumption (kg/h) | <200 | <400 | <600 | <800 | <1200 | <2000 | |
|
Overall dimension long× Width×height (m) |
3×5×1.3 | 3.3×6.5×1.5 | 3.5×7×1.7 | 4×7.5×2 | 4.3×7.8×2 | 4.5×8×2 | |
| Circulating water consumption (T/H) | 5 | 10 | 13 | 15 | 18 | 25 | |
| Evaporation temperature | One effect | 80-90 | Vacuum (Mpa) | One effect | 0.02-0.04 | ||
| Two-effect | 55-70 | Two-effect | 0.05-0.08 | ||||
| Triple effect | 55-65 | Triple effect | 0.08-0.09 | ||||
| Steam pressure (Mpa) | One effect 0.2 | Concentrated specific gravity | 1.2-1.3 | ||||
