Unsaturated polyester resin equipment
Complete set of equipment technical parameter table
| Serial number | Part Name | Volume and size | |||||||||
| 1 | Reaction kettle L | 50 | 100 | 300 | 500 | 1000 | 2000 | 3000 | 5000 | ||
| 2 | Vertical Fractionation Column |
DN70 ×460 |
DN100 ×500 |
DN150×560 | DN150×750 | DN200×790 | DN200×1000 | DN250×1200 | DN300×1200 | ||
| 3 | Vertical condenser M2 | 0.01 | 0.19 | 0.22 | 0.49 | 1 | 1.5 | 2.5 | 5 | ||
| 4 | Horizontal condenser M2 | 0.29 | 0.58 | 1.5 | 2.08 | 3.17 | 5 | 12 | 20 | ||
| 5 | Shrink irrigation L | 8 | 30 | 50 | 60 | 100 | 120 | 198 | 300 | ||
| 6 | Dilution kettle L | 100 | 200 | 500 | 800 | 1500 | 3000 | 4500 | 7500 | ||

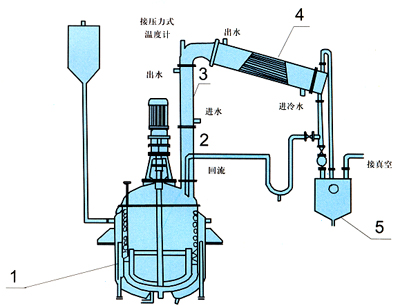

1. Reactor 2. Vertical fractionating column 3. Vertical condenser 4. Horizontal condenser
